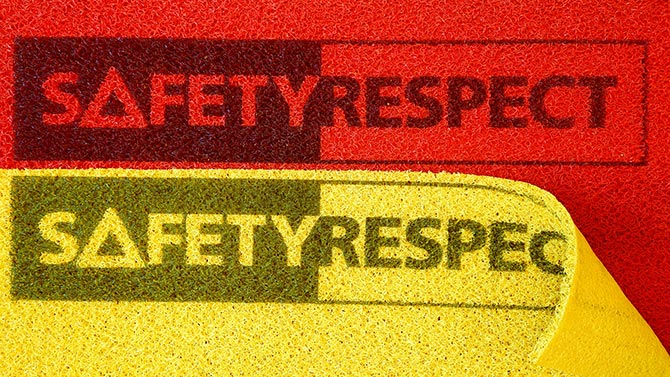

Safety mats for construction sites

Safety mats

Safety mats for construction sites

SafetyRespect Safety mats are specially designed to handle dirt and moisture coming by feet away from the working and life areas and reduce the cleaning costs.

Applications
Inside and outside in areas to prevent slipping or wear where pedestrian traffic is high. Especially preferred at construction sites, commercial offices, public buildings, apartments,
wet floors in the edges of the pools, icy surfaces, tool and equipment drawers, government institutions, subway, gardens, bathrooms, sidewalks, hotels, restaurants, and sports venues.

Available upon request
• Other sizes (length, width, thickness).
• Non-slip backing that you can easily use at door entrances of commercial offices, homes, and public buildings.
• Customized colour and branding.

Art. No. 983501

SPECIFICATIONS
Material: PVC
Thickness: 14 mm
Width:
1 m
Length: 10 m
Weight:
3 kg/m2
Packing:
6-8 rolls, Europallet

Safety mats for construction sites

Balcony bracket

Balcony bracket 10 gr

Balcony bracket

Inclined bracket for edge protection that facilitates installation of external panel wall. The ordinary attachment for the balcony railing can be used for installing the Balcony bracket. After that Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 are installed in order to adapt the edge protection according to the dimensions of the balcony.

• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.

Art. No. 912160

Product sheet

Edge protection balcony



Balcony bracket

Balcony bracket

Balcony bracket

The ordinary attachment for the balcony railing can be used for attaching edge protection. Here you can use Balcony bracket with Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 in order to adapt the edge protection according to the dimensions of the balcony.

• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.

Art. No. 912150

Product sheet

edge protection balconies

collective edge protection house construcion

fall protection balconies

collective edge protection house construcion



Barrier bracket 360

Barrier bracket 360 is an accessory from the Standard system of temporary edge protection components. This bracket is used on posts in corners to allow two barriers to connect to a single post at 90 degrees, so reducing the need for two posts around every corner. This is consequently reducing the equipment schedule and installation time. It simply inserts onto the wedge housings on Post 1,3.

• Dimensions approx. 113 x 85 mm.
• Hot dip galvanized.

Art. No. 919010

Product sheet

Temporary edge protection around a floor opening at construction site in UK

openings_safetyrespect_069

Temporary edge protection around a floor opening at construction site in UK

barrier for temporary edge protection on construction site UK

Barrier 2,6

barrier for temporary edge protection on construction site UK

The Barrier 2,6 is a steel framed mesh barrier designed according to EN13374. It is used to prevent falls from height when installed and connected on compatible posts, to form a temporary edge protection system for collective safety on construction projects.

This barrier is the fundamental component in our innovative temporary edge protection systems. Manufactured from steel mesh reinforced with a full perimeter frame improving strength and handling with a 260 mm high toe board to prevent debris falls. Overall height is 1220 mm available in lengths 2600 mm and 1300 mm.

Engineered to connect to our posts with twin wedge connectors that allow front-fitting, a precise and safer installation method than “over the post” systems. The barrier replaces twin guardrails, loose toe boards and connectors in one component.

SafetyRespect temporary edge protection systems have connecting components for most structure types, reinforced and precast concrete, infrastructure, steel, timber & prefabricated mainly incorporating the steel mesh barrier to provide collective protection.

The barriers are zinc plated under powder coating for long-lasting durability.

• Available in two lengths, 1.3 and 2.6 meters.
• Zinced and powder coated.
• Stable frame construction.
• Integrated toe board 260 mm.
• Weight 19,7 kg.
• 35 pieces delivered in stacking stillage.

Art. No. 913111

Product sheet

post_1-3_safetyrespect_8

collective edge protection house construcion

Temporary edge protection on steel beams

Installation collective fall protection SafetyRespect

concrete_slab_edges_safetyrespect_0136

installation_safetyrespect_9872



Barrier 1,3

The Barrier 1,3 is a steel framed mesh barrier designed according to EN13374. It is used to prevent falls from height when installed and connected on compatible posts, to form a temporary edge protection system for collective safety on construction projects.

This barrier is the fundamental component in our innovative temporary edge protection systems. Manufactured from steel mesh reinforced with a full perimeter frame improving strength and handling with a 260 mm high toe board to prevent debris falls. Overall height is 1220 mm available in lengths 2600 mm and 1300 mm.

Engineered to connect to our posts with twin wedge connectors that allow front-fitting, a precise and safer installation method than “over the post” systems. The barrier replaces twin guardrails, loose toe boards and connectors in one component.

SafetyRespect temporary edge protection systems have connecting components for most structure types, reinforced and precast concrete, infrastructure, steel, timber & prefabricated mainly incorporating the steel mesh barrier to provide collective protection.

The barriers are zinc plated under powder coating for long-lasting durability.

• Available in two lengths, 1.3 and 2.6 meters.
• Can be easily raised and lowered on the posts.
• Zinc plated and powder coated.
• Stable frame construction.
• Integrated toe board 260 mm.
• Weight 10,8 kg.
• 46 pieces delivered in stacking stillage.

Art. No. 913121

Product sheet

post_1-3_safetyrespect_8

collective edge protection house construcion

Installation collective fall protection SafetyRespect

concrete_slab_edges_safetyrespect_0136

Temporary edge protection on steel beams

installation_safetyrespect_9872

Alu beam bracket (primary and secondary)

The Alu beam bracket is used to connect the SR Temporary edge protection system to aluminium primary or secondary beams in horizontal formwork / falsework systems. They straddle the beams with a bolt lock underneath to clamp onto its upper flange. Post 1,3 m is then inserted into the Alu beam bracket, which has built in a post lock inside the post holder to prevent uplift or accidental uplift. This makes it suitable for using on table formwork.

It is available in two lengths (primary and secondary) to ensure that the edge protection barriers are set at the correct height. Compatible with most systems including Ishebeck, Brandway, RMD Kwikform and Peri.

• Integrated post lock.
• Hot dip galvanized.
• Quick screw lock.
• Delivered in stacking stillage.
• Weight 3,0 kg, 2,3 kg.

Alu beam bracket primary: Art. No. 912170
Alu beam bracket secondary: Art. No. 912171

Product sheet

Strap

Very strong and durable straps for attaching, fastening and strapping edge protection equipment at construction sites.

• Great range of application.
• Three different lengths.

Strap 0,6 m. – Art. no. 919206
Strap 1,5 m. – Art. no. 919215
Strap 5,0 m. – Art. no. 919250

Product sheet



Flex facade bracket

Flex facade bracket

Flex facade bracket

In order to create a free working space on facades Flex facade brackets can be used as attachments for temporary edge protection. The attachment itself is designed in order to facilitate installation of edge protections. The distance between the facade and edge protection can easily be adjusted during ongoing work. Flex Facade bracket is available in three different lengths to suit most situations and if the attachments are projected early in the process, the assembly goes quickly and smoothly with high safety. For more specific needs, special configurations of Flex working platform can be the solution that provides good protection without being in the way of work near the edge of the work surface.

• Adjustable 50 – 550 mm from the facade.
• Keyhole bracket.
• Installed with c/c up to 2,4 m.
• Hot dip galvanized.
• Weight 6,8 kg.

FLEX FACADE BRACKET 280
Art. no. 914043

FLEX FACADE BRACKET 400
Art. no. 914118

FLEX FACADE BRACKET 600
Art. no. 914119

Product sheet



Flex facade bracket - Edge protection on house roofs

Fall protection on house facade

Temporary edge protection on facade

flex_facade_bracket_safetyrespect_9736

Barrier bracket wedge coupler

Barrier bracket wedge coupler is used on posts or scaffold pipes (48,3 mm) for attachment of Barriers or Adjustable link bars, as collective edge protection on construction sites.

• Integrated barrier lock.
• Hot dip galvanized.
• Weight 1,1 kg.

Art. No. 919015

Product sheet

barrier_bracket_wedge_coupler_2

barrier_bracket_wedge_coupler_double_safetyrespect_3

barrier_bracket_wedge_coupler_safetyrespect_2
